The Bond To Fit (Framed)-Honeycomb Blinds is a framed 16mm pleated blind specifically designed for use on:
Aluminium square edge beaded bi-fold doors or windows.

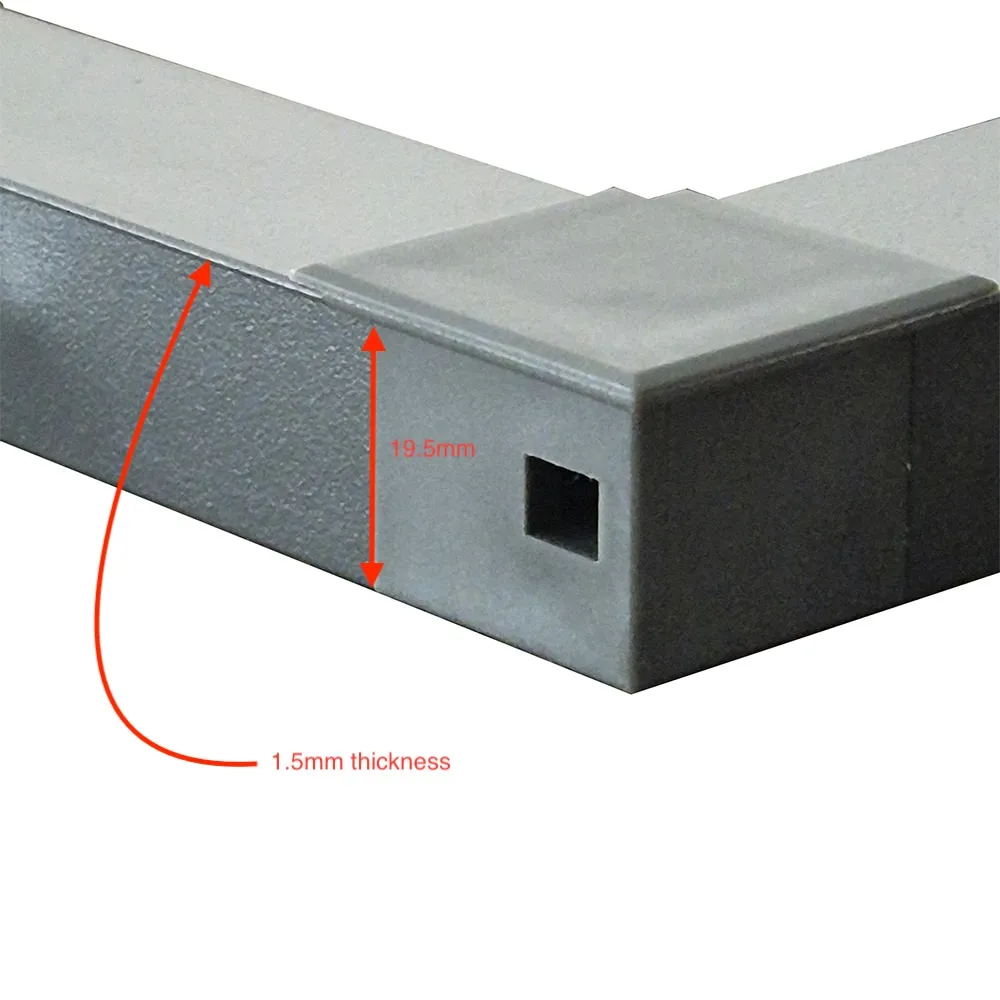

The overall depth is only 19mm, meaning it will fit into most small spaces
Installation into aluminium windows is recommended by using silicone sealants in small amounts to secure the frame to the beading
Behind plantation shutters or even into existing frames
It’s so small, it can even fit into 47mm wooden shutter frames without affecting panel closure, and provides a fantastic blackout
Installation is recommended either by using silicone or small screws ‘side-fixed’
Velux's style of loft windows
Offering a cheaper alternative to the original manufacturers’ products
Installation is recommended by using small screws ‘side-fixed’
It will work at any angle and can be ordered as an H-Screen (top->bottom or bottom->top) or a V-Screen (left->right or right->left).
The system is simple, lightweight and cost-effective. Currently available in 6 light filtering and 6 blockout fabrics. Frame profiles are available in White (smooth), Dark Grey (sandy), and Dark Coffee (sandy).
NOTE: This product is not suitable for PVC beaded windows since the overlap of the frame does not cover the beading, and there is no suitable way to fix it.
Stacking Heights
| Drop | Stack |
|---|---|
| 1000mm | 51mm |
| 1500mm | 57mm |
| 2000mm | 62mm |
| 2300mm | 76mm |
Features
- FITtoFRAME™ in minutes: Quick and easy installation.
- Fitted in 3 simple steps: Hassle-free setup.
- No Drilling Required: High-strength adhesive tape affixes the side guide to the window.
- Hardware Colour Options: Available in White, Anthracite RAL7016, and Black.
- Child-Safe Design: No cords for enhanced safety.
- Perfect for Bifold Doors & Tilt and Turn Windows: Designed specifically for these window types.
- Honeycomb Fabric: Offers excellent light control, energy efficiency, anti-glare, blackout, or water resistance.
- Top Down, Bottom Up Operation: Precise light control with flexible positioning.
- Tensioned System with Side Rails: Ensures smooth movement and stability.
- Size Range:
- Minimum Width: 200mm, Minimum Drop: 150mm
- Maximum Width: 1500mm, Maximum Drop: 2300mm
Click on the link below for fitting instructions.
Measure the width and length of the glass size on each window without making any adjustments.
Fitting Instructions:Bond To Fit (Framed)-Honeycomb Blinds
