Street Art Roto Electric Skylight Window Blinds

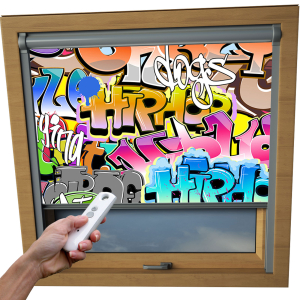

Street Art Roto Skylight Electric Window Blinds Silver Frame Detail

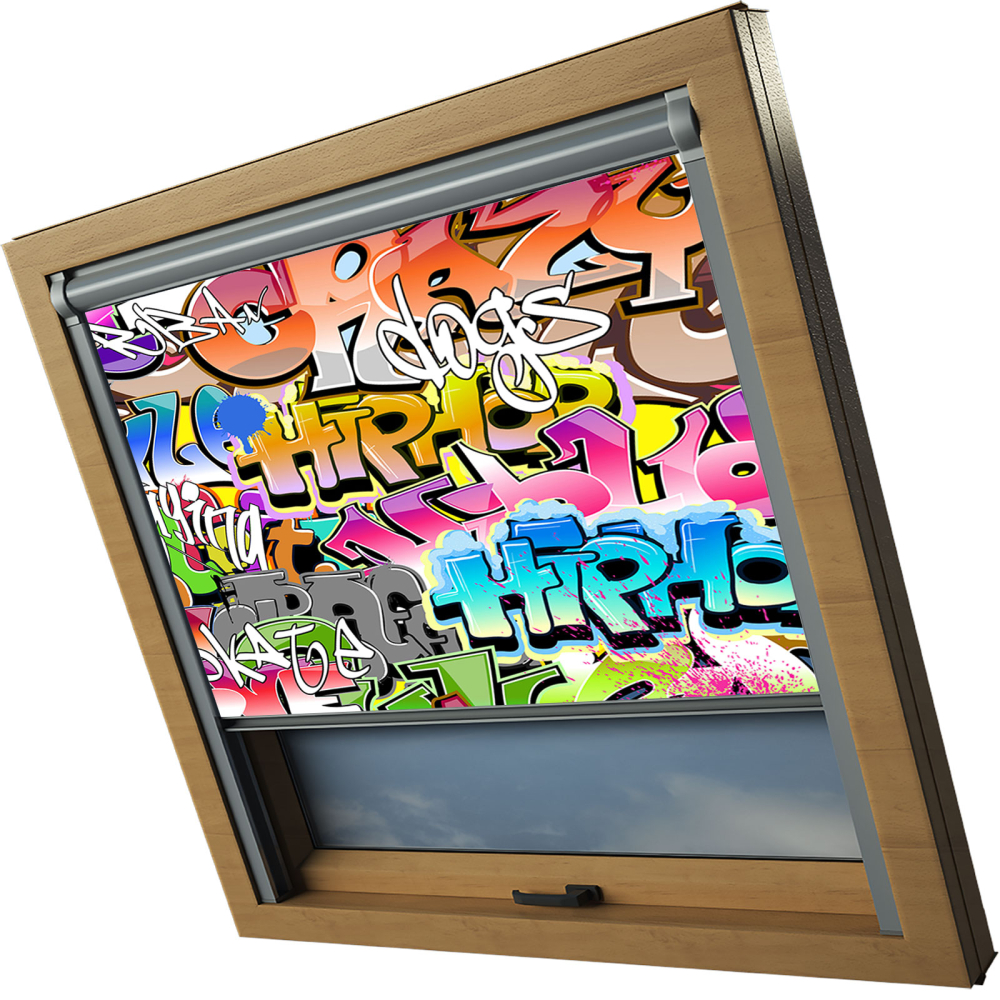

Street Art Roto Skylight Electric Window Blinds Silver Frame Side Detail

Street Art Roto Skylight Electric Window Blinds Parts

Add a stylish flair to your skylights with the Street Art Skylight Window Blind. Compatible with Roto windows, this blackout blind is perfect for those who love art and want to bring a touch of creativity to their home. Made from high-quality polyester, it features a multi-coloured, patterned design that adds a unique dash of personality to any room. This thermal blind not only enhances your interior decor but also provides excellent light control and insulation. With its solar electric operation, it's easy to manage the light and temperature in your space. Ideal for living rooms, bedrooms, and offices, this blind is a must-have for anyone looking to blend style and functionality seamlessly.

Fully compatible with Roto Windows

Eco-Friendly Power: solar-powered blinds use the sun’s energy, reducing reliance on electricity.

Fabric composition: 100% Polyester. White Thermal backing.

Remote control operation

Blackout Thermal Fabric

Supplied with Silver or White aluminium side channels, cassette and handle

Fully installed with just 4 screws

Reduces heat loss in the winter

Reduces heat gain in the summer

Click on the link for product information on Solar Electric Skylight Blinds.

Measuring Instructions:

Roto Skylight Window Blinds

Fitting Instructions For:

Roto Skylight Blinds

Fitting Video:

Orders under £199 incur a delivery charge of £8.95 for UK mainland postcodes.

Orders over £199 are free for all UK mainland postcodes.

All orders are dispatched using fully insured couriers.

Deliveries are generally made Monday to Friday 9am to 6pm.

Street Art Blackout Electric Blind For Roto Windows

Made to Measure Skylight Blinds

from £358.88

Price Please

from £358.88

Compatible With Most Leading Roof Window Brands

Need help measuring? Find Your Roto Window Code

The product plates for Roto windows are found down the side of the window (open the window and you should see it) They are often in Red or Blue. Open the cover of them to reveal the information as displayed below. Although there is a lot of information only parts of it are relevant. All you need to note down for ordering is the Serial Number and Window Code. On the images below we have circled where these are.

IF YOU NEED ANY ASSISTANCE IN FINDING YOUR WINDOW CODE THEN PLEASE USE

THIS LINK TO SUBMIT YOUR SIZES AND WE WILL BE IN TOUCH SHORTLY.

If you cannot find the data plate follow the instructions below and note down the information required.

1) Measure the visible glass size, and width first, then the drop in millimetres. Using the tables below find your window sizes in the visible glass width & visible glass drop columns. Once located look left of the table for the window code. e.g. in the table below 384mm x 544mm is Window Code 5/7

2) Check if the frame is made from Wood or PVC. Look in the first column in the tables below for wood or PVC to choose any of the Series numbers.

Please note: The frame type must match the glass size. For example, a window code 5/7 in a wood frame is a different size from a 5/7 with a PVC frame.

IF YOU NEED ANY ASSISTANCE IN FINDING YOUR WINDOW CODE THEN PLEASE USE THIS LINK TO SUBMIT YOUR SIZES AND WE WILL BE IN TOUCH SHORTLY.

Window Codes & Glass Sizes

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/7	540mm	700mm	384mm	544mm
	5/9	540mm	980mm	384mm	824mm
	5/11	540mm	1180mm	384mm	1024mm
	6/9	650mm	980mm	494mm	824mm
	6/11	650mm	1180mm	494mm	1024mm
	6/14	650mm	1400mm	494mm	1244mm
	7/7	650mm	700mm	494mm	544mm
	7/9	780mm	980mm	624mm	824mm
	7/11	780mm	1180mm	624mm	1024mm
	7/14	780mm	1400mm	624mm	1244mm
	7/16	780mm	1600mm	624mm	1444mm
	9/7	940mm	700mm	784mm	544mm
	9/9	940mm	980mm	784mm	824mm
	9/11	940mm	1180mm	784mm	1024mm
	9/14	940mm	1400mm	784mm	1244mm
	9/16	940mm	1600mm	763mm	1444mm
	11/7	1140mm	700mm	984mm	544mm
	11/9	1140mm	980mm	984mm	824mm
	11/11	1140mm	1180mm	984mm	1024mm
	11/14	1140mm	1400mm	984mm	1244mm
	13/7	1340mm	700mm	1184mm	544mm
	13/9	1340mm	980mm	1184mm	824mm
	13/14	1340mm	1400mm	1184mm	1244mm

Wood Frame	300 Series	310 Series	320 Series	329 Series	330 Series
Wood Frame	339 Series	500 Series	520 Series	530 Series	559 Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/7	540mm	780mm	380mm	620mm
	5/9	540mm	980mm	380mm	820mm
	5/11	540mm	1180mm	380mm	1020mm
	6/9	650mm	980mm	490mm	820mm
	6/11	650mm	1180mm	490mm	1020mm
	6/14	650mm	1400mm	490mm	1240mm
	7/7	740mm	700mm	580mm	540mm
	7/9	740mm	980mm	580mm	820mm
	7/11	740mm	1180mm	580mm	1020mm
	7/14	740mm	1400mm	580mm	1240mm
	7/16	740mm	1600mm	580mm	1440mm
	9/7	940mm	780mm	780mm	620mm
	9/9	940mm	980mm	780mm	820mm
	9/11	940mm	1180mm	780mm	1020mm
	9/14	940mm	1400mm	780mm	1240mm
	9/16	940mm	1600mm	780mm	1440mm
	11/7	1140mm	780mm	980mm	620mm
	11/9	1140mm	980mm	980mm	820mm
	11/11	1140mm	1180mm	980mm	1020mm
	11/14	1140mm	1400mm	980mm	1240mm
	13/7	1340mm	780mm	1180mm	620mm
	13/9	1340mm	980mm	1180mm	820mm
	13/14	1340mm	1400mm	1180mm	1240mm

Wood Frame	400 Series	410 Series	417 Series	430 Series	435 Series
	439 Series	700 Series	735 Series	738 Series	739 Series
	R4 Series	R7 Series	R75 Series	R78 Series	R79 Series
	R79T Series

PVC Frame	R7 Series	R75 Series	R78 Series	R79T Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/7	540mm	780mm	353mm	580mm
	5/9	540mm	980mm	353mm	780mm
	5/11	540mm	1180mm	353mm	980mm
	6/9	650mm	1180mm	463mm	980mm
	6/11	650mm	1180mm	463mm	980mm
	6/14	650mm	1400mm	463mm	1200mm
	7/9	740mm	980mm	553mm	780mm
	7/11	740mm	1180mm	553mm	980mm
	7/14	740mm	1400mm	553mm	1200mm
	7/16	740mm	1600mm	553mm	1400mm
	9/7	940mm	780mm	753mm	580mm
	9/11	940mm	1180mm	753mm	980mm
	9/14	940mm	1400mm	753mm	1200mm
	9/16	940mm	1600mm	753mm	1400mm
	11/7	1140mm	780mm	953mm	580mm
	11/9	1140mm	980mm	953mm	780mm
	11/11	1140mm	1180mm	953mm	980mm
	11/14	1140mm	1400mm	953mm	1200mm
	13/7	1340mm	780mm	1153mm	580mm
	13/9	1340mm	980mm	1153mm	780mm
	13/14	1340mm	1400mm	1153mm	1200mm

Wood Frame	600 Series	610 Series	617 Series	619 Series	620 Series
	627 Series	629 Series	647 Series	649 Series	800 Series
	840 Series	844 Series	845 Series	846 Series	847 Series
	849 Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/7	540mm	780mm	320mm	561mm
	5/9	540mm	980mm	320mm	761mm
	5/11	540mm	1180mm	320mm	961mm
	6/9	650mm	1180mm	430mm	961mm
	6/11	650mm	1180mm	430mm	961mm
	6/14	650mm	1400mm	430mm	1161mm
	7/9	740mm	980mm	520mm	761mm
	7/11	740mm	1180mm	520mm	961mm
	7/14	740mm	1400mm	520mm	1161mm
	7/16	740mm	1600mm	520mm	1361mm
	9/7	940mm	780mm	720mm	561mm
	9/11	940mm	1180mm	720mm	961mm
	9/14	940mm	1400mm	720mm	1161mm
	9/16	940mm	1600mm	720mm	1361mm
	11/7	1140mm	780mm	920mm	561mm
	11/9	1140mm	980mm	920mm	761mm
	11/11	1140mm	1180mm	920mm	961mm
	11/14	1140mm	1400mm	920mm	1181mm
	13/7	1340mm	780mm	1120mm	561mm
	13/9	1340mm	980mm	1120mm	761mm
	13/14	1340mm	1400mm	1120mm	1181mm

PVC Frame	600 Series	610 Series	617 Series	619 Series	620 Series
PVC Frame	627 Series	629 Series	800 Series	840 Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/8	540mm	850mm	384mm	688mm
	5/11	540mm	1120mm	384mm	958mm
	6/8	650mm	850mm	494mm	688mm
	6/11	650mm	1120mm	494mm	958mm
	7/11	740mm	1120mm	584mm	958mm
	7/14	740mm	1450mm	584mm	1288mm
	8/11	850mm	1120mm	694mm	958mm
	9/12	940mm	1230mm	784mm	1068mm
	9/14	940mm	1450mm	784mm	1288mm
	10/11	1050mm	1120mm	894mm	958mm
	10/12	1050mm	1230mm	894mm	1068mm
	10/14	1050mm	1450mm	894mm	1288mm
	13/14	1340mm	1450mm	1184mm	1288mm

Wood Frame	410 Series	410B Series	410C Series	417 Series	417B Series
Wood Frame	417C Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/8	540mm	850mm	384mm	688mm
	5/11	540mm	1120mm	384mm	958mm
	6/8	650mm	850mm	494mm	688mm
	6/11	650mm	1120mm	494mm	958mm
	7/11	740mm	1120mm	584mm	958mm
	7/14	740mm	1450mm	584mm	1288mm
	8/11	850mm	1120mm	694mm	958mm
	9/12	940mm	1230mm	784mm	1068mm
	9/14	940mm	1450mm	784mm	1288mm
	10/11	1050mm	1120mm	894mm	958mm
	10/12	1050mm	1230mm	894mm	1068mm
	10/14	1050mm	1450mm	894mm	1288mm
	13/14	1340mm	1450mm	1184mm	1288mm

Wood Frame	410 Series	410B Series	410C Series	417 Series	417B Series
Wood Frame	417C Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/7	540mm	780mm	328mm	568mm
	5/9	540mm	980mm	328mm	768mm
	5/11	540mm	1180mm	328mm	968mm
	6/9	650mm	1180mm	438mm	768mm
	6/11	650mm	1180mm	438mm	968mm
	6/14	650mm	1400mm	438mm	1188mm
	7/9	740mm	980mm	528mm	768mm
	7/11	740mm	1180mm	528mm	968mm
	7/14	740mm	1400mm	528mm	1188mm
	7/16	740mm	1600mm	528mm	1388mm
	9/7	940mm	780mm	728mm	568mm
	9/11	940mm	1180mm	728mm	968mm
	9/14	940mm	1400mm	728mm	1188mm
	9/16	940mm	1600mm	728mm	1388mm
	11/7	1140mm	780mm	928mm	568mm
	11/9	1140mm	980mm	928mm	768mm
	11/11	1140mm	1180mm	928mm	968mm
	11/14	1140mm	1400mm	928mm	1188mm
	13/7	1340mm	780mm	1128mm	568mm
	13/9	1340mm	980mm	1128mm	768mm
	13/14	1340mm	1400mm	1128mm	1188mm
	6/18	650mm	1800mm	438mm	1588mm
	7/18	740mm	1800mm	528mm	1588mm
	9/18	940mm	1800mm	728mm	1588mm
	11/16	1140mm	1600mm	928mm	1388mm

Wood Frame	R6 Series	R8 Series	R85 Series
PVC Frame	647 Series	847 Series	R8 Series	R85 Series

		Frame	Frame	Visible	Visible
	Window Code	Width	Drop	Glass Width	Glass Drop
	5/8	540mm	850mm	390mm	690mm
	5/11	540mm	1120mm	390mm	960mm
	6/8	650mm	850mm	500mm	690mm
	6/11	650mm	1120mm	500mm	960mm
	7/11	740mm	1120mm	590mm	960mm
	7/14	740mm	1450mm	590mm	1290mm
	8/11	850mm	1120mm	700mm	960mm
	10/11	1050mm	1120mm	900mm	960mm
	10/14	1050mm	1450mm	900mm	1290mm
	13/14	1340mm	1450mm	1190mm	1290mm
	78/9	780mm	980mm	622mm	820mm
	78/11	780mm	1180mm	622mm	1020mm
	78/14	780mm	1400mm	622mm	1240mm

Wood Frame	410A Series
PVC Frame	R78 Series	R79T Series
